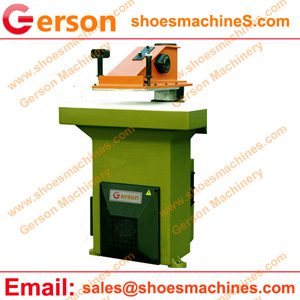

Gerson die cut clicker press for plastic,leather,fabric,paper etc., Also could die cut rubber gaskets, textiles, felt, fleece foam plastics, upholstery material paper soft and semi-rigid material.
1.Gerson clicker press is from the smallest 8 Ton to 30 Ton Model,Gerson swing arm clicker press are adaptable to a vast range of applications in lab,industry .
2.The die cut licker press is easy to operate that only place the material on the bed of the clicker press, position the cutting knife/die/tool on the material and press the twin, operating buttons.
3.The die cut clicker press can cut materials in single or multiple layers in sheet or roll.
4.The cutting table size ,the upper width ,stroke and the cutting force can custom build.
5.More bigger die cutting press and cutting table size ,can use Gerson beam press.
| Model | GSB,GR,GRA model |
| Maximum Cutting Force | 8-30 tons |
| Cutting speed | 0.085m/s |
| Adjustable stroke | 5-180mm |
| Tension distance | 60-250mm |
| Cuttting table size | 800,900,1000,1200×400,500mm |
| size | 660×780×1500mm or more |
| Motor Power | 0.75KW,1.1KW |
| Net Weight (N.W.) | 450Kgs-1100Kgs |
