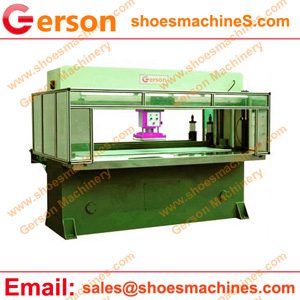

Cut-to-Sizes hydraulic cutting machine

Cut-to-Sizes hydraulic cutting machine is used for cutting material to any sizes and shapeswith the formated die.

Cut-to-Sizes hydraulic cutting machine
Cut-to-Sizes hydraulic cutting machine

1. Materials listed below are within our cutting range:

ABS, Polycarbonate, Hi Impact Styrene, PVC, Polyesters, Polypropylene, Leather, Magnetic Vinyl, Kapton, Gravoply, Paper, Gasket fiber, Foam, Pressure sensitive vinyl, Chipboard, Corrugated, Rubber, Corrugated Polyethylene, Fabric, Foam Core, Ultra board, Silicone etc.,

2. Materials no matter are in sheet or roll, single-layer or multilayer can be die cut by the machine smoothly.

3. The machine has optional modes to choose from: manual feed, auto feed and continuous die cutting.

4. Cutting table size and cutting force can be made accordingly.

5. Gerson accept any specific information of cut-to-size hydraulic machine.

Model GSB,GR,GRA,GRB serials
Maximum   Cutting Force 8Tons-500Tons or More
Cutting speed 0.085m/s
Adjustable stroke 5-300mm or more
Tension distance 60-350mm or more
Cuttting table size 650×330mm to 3000mm×2500mm
size 660×780×1500mm to 2800×3200×1700mm
Motor Power 0.75KW to 22Kw
Net Weight (N.W.) 550Kgs to 18000kgs
