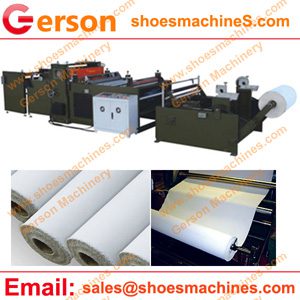

Cotton textiles fabric cutting machine

Cotton textiles fabric cutting machine is cutting machine for cutting contton fabric ,these cotton textiles fabric:Broadcloth,Canvas,Chambray,Chenille,Chintz,Corduroy,Damask,Denim,Flannel,Gingham,Jacquard,Knit,Matelassé,Oxford,Percale,Poplin,Plissé,Sateen,Seersucker,Sheers,Terry cloth,Twill,Velvet etc.,

Cotton textiles fabric cutting machine
Cotton textiles fabric cutting machine

1.Gerson Cotton textiles fabric cutting machine can die cut out material in sheet or rolls form single layer or muti-layers .

2.The machine have two hydraulic cylinders coupled with a synchronization bar. This self-balancing system guarantees that the maximum cutting force of the press.

3.It is for cutting large width because of large work table ,So it is great for cutting contton textiles fabric or other similar material.

4.The autoamtic roll Feed system options to increase capacity and reduce material cost.

5.Gerson can build to suit your production requirements and Gerson welcome your request for a machine specific to meet your need.

Model GRBC-25T to 500T
Max cutting force(T) From 25T to 500
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
1800 to 18500
