cotton fabric cutting machine

Gerson cutting machine for die cutting cotton fabric ,The Cotton  fabrics for garments, underpinnings, crafts, quilting and home decorating  cotton textiles.

Gerson die cutting machine  also can be for cutting the other fabric material and leather ,plastic,rubber,paper etc.,

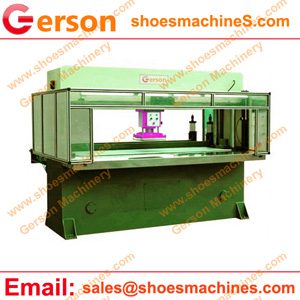

For small and medium cutting dies ,such as football cotton fabric for making football etc ., Gerson travelling head cutting machine can be good choice.

cotton fabric cutting machine
cotton fabric cutting machine

a. Digital control system of “PLC + coder” human-machine interface is adopted to realize automatic feeding, pattern arrangement and cutting. Five kinds of arrangement figures are optional for automatically setting cutting times with high precision. The positioning precision can reach 0.2mm so as to save materials, enhance work efficiency and reduce labor intensity.
b. PLC program control center is provided with memory function for the settings of operation instructions, which are not influenced in case of power failure or power-cut after work, so as to facilitate operation for the next time.
c. Double oil cylinders drive, four-column guiding and automatic balancing are adopted to guarantee identical cutting depth for each time.
d. Three operation modes such as automatic, semiautomatic and manual operations are optional, which are free and flexible.
e. The cutting head can carry out automatic transverse movement and automatic positioning. The cutter die is fixed by electromagnetic suction disc. Without the need of setting die cutters, the upper and lower die cutters can carry out cutting freely with convenient operation.
f. The automatic lubricating system ensures machine precision and prolongs service life.

Model GRMA-25,30,40,50,60,80,100
Max Cutting Force 25,30,40,50,60,80,100 tons
Cutting table Widths 1800~2500mm or more
Cutting Head/Movable trolley 500 x 500mm up to 1000 x 1000mm
Gerson can make the cutting machine according to your specifical requirement :

such as cutting force power,worktable size,motor,color etc.,

For big or large cutting dies Gerson beam cutting machine can be good choice.

cotton fabric beam cutting machine

1.From the smallest 25 Ton to the largest 500 Tons.
2.Cutting are from 800x500mm to any size according material requirement.
3.Die Cut materials in single or multiple layers
4.Blade upward or downward cutting
5.Four column, with two cylinder construction
6.Double mechanical balancing system
7.Even cutting and full power across complete cutting area
8.Heavy duty construction
9.Low deflection
10.Two stage press closure reduces size variation or distortion in 12.thick or multi-ply material applications
11.Steel to steel cutting available with optional equipment
12.Accept customized requirement .

Option equipment tools:

1.Inboard and outboard material conveyors
2.Manual tool rails
3.Pneumatic adjustable tool rails
4.Board rails to clamp cutting boards to press head
5.Material feed rollers
6.Automatic knock-out systems
7.Material alignment
8.Automatic cutting pad shifter
9.Edge sensing
10.Automatic tool changing
11.Tool racking
12.Material feed gantries and many other options.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
