Gerson collar lining foam cutting machine is die cutting machine for Cervical Collars Pads,Cotton-lined Foam,Collar lining foam ,walker liner foam, removable padded liner,soft felt collar etc.,

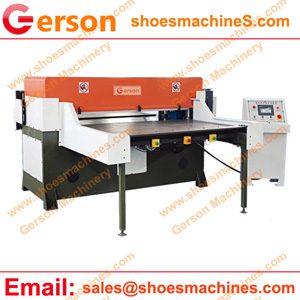

Collar lining foam cutting machine
1.The cutting machine can die cut-out any shapes by the cutting die .
2.The cutting machine can be for large die and can cut-out several cut-parts in single layer or multi layers at a time.
3.The cutting machine uses hydraulic system that make sure high quality and reliable.
4.Many feed system can be choice to meet the material requirement:Single or double sided auto sliding table feeding ,Clamping beam feeding system,Cutting on belt feeding system,Incremental feeding system etc.,
5.Any special requirement or need more information,please contact Gerson .
| Model | GRBC-25T to 500T |
| Max cutting force(T) | From 25T to 500 |
| Distance between upper press board andworktable(mm) | 50-240 |
| Cutting area(mm) | 1250×600,700,800,900,1000,1200, 1500,2000 or more |
| 1470×600,700,800,900,1000,1200, 1500,2000 or more | |
| 1600×600,700,800,900,1000,1200, 1500,2000 or more | |
| Motor power | 1.5 to 22KW |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 | |
| 1800 to 18500 |
