Coated Leather cutting machine

Gerson leather cutting machine can be for genuine leather, Coated Leather and Bonded Leather Fibre etc., There have several cutting machines models for Coated Leather cutting.

Coated Leather cutting machine
Coated Leather cutting machine

Leather clicker press .The clicker press is for the small die cutting .the nomal table size is about 900mm*400mm,900mm*430mm,1000mm*500mm etc.,The cutting force is from 8Ton ,10 Tons, 12 tons,14Tons,18 tons,20Tons,22Tons, 2/27/28Tons etc.,

Model GSB-8/10,GSB-2C,GR,GRA
Maximum   Cutting Force 8Tons,10,12,14,15,16,18,20,22,25,27,28 ton
Cutting speed 0.085m/s
Adjustable stroke 5-180mm
Tension distance 60-190mm
Cuttting table size 650×330mm,900×430mm,1000×500mm
size 660×780×1500mm to 1350×1180×1700mm
Motor Power 0.75KW to 1.5Kw
Net Weight (N.W.) 550Kgs to 1200kgs













Coated Leather cutting machine
Coated Leather cutting machine

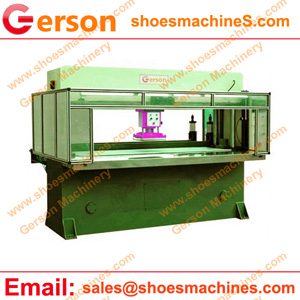

Leather treavelling head press: with movable head .The press can move from left to the right .The table size from 1600 x 500 mm up to 2300 x 1000 mm ,And the cutting force from 25 Tons to 100Tons or more.

The other cutting machines or speciall custom made machine,please contact Gerson sales department.

Model GRMA-25,30,40,50,60,80,100
Max Cutting Force 25 to 100 tons
Cutting table Widths 1800~2500mm or more
Cutting Head/Movable trolley 500 x 500mm up to 1000 x 1000mm
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc
