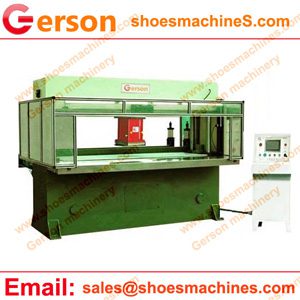

CNC Movable Trolley Press

Gerson CNC movable trolley press is the die cutting press used for large volumn production such as sport ball :footbal etc., gasket ,seal,floor mat ,shoes insole,disposable pad,medical products etc.,



CNC Movable Trolley Press
CNC Movable Trolley Press

1.The CNC  movable trolley press can die cutting our for the soft and semi-rigid material such as the fabric,leather,foam,PVC,plastic,rubber and other similar material in sheet or rolls with single or multi-layers.

2.With strong four post ,high quality steel and hydraulic component let the Gerson machine have very good quality for long time life of the machine .

3.There have many optional device and feed system,such as  pinch & grab belt feed, auto tray feed, nip roller feed, inboard  and outboard conveyor feed,auto sheet loader,360 rotation trolley head,nesting software and more.

4.The machine is very easy to operate ,no special requirement for the operator this die cutting machine,excellent vision of the work area so that make sure that the operator is in control at all times.

5.More special welcome to contact Gerson for designing and building to suit your production requirements.

Model GRMA-25,30,40,50,60,80,100,150
Max Cutting Force 25 to 150 tons
Cutting table Widths 1600~2500mm or more
Cutting Head/Movable trolley 500 x 500mm up to 1500 x 1500mm
