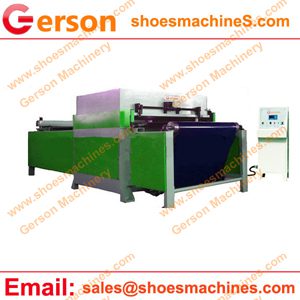

CNC Belt Fully Automatic Feeding Hydraulic Cutting Machine

Gerson CNC Belt Fully Automatic Feeding Hydraulic Cutting Machine is CNC machinery for die cutting the soft and semi-rigid material .

CNC-Belt-Fully-Automatic-Feeding-Hydraulic-Cutting-Machine
CNC-Belt-Fully-Automatic-Feeding-Hydraulic-Cutting-Machine

1. It is using four post/column,hydraulic driven press system ,low noisy and easy maintenance .

2.Cutting against belt feed system with material locating device.

3.It is designed for efficient cutting of car upholstery or any similar products for roll material.

4.It is equipped with safety grating protection device.

5.The size of table ,press pressure etc., can custom build.

Model GRB(C)-25T to 1500T
Max cutting force(T) From 25 Tons to 1500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
