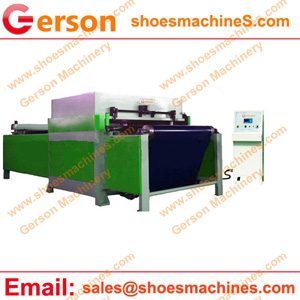

CNC Automatic Conveyor Belt Feed Material Cutting Machine is automatic die cutting machine designed and manufactured by Gerson .It is a cutting press with Conveyor Belt Delivery System.In fact ,It is Computer Controlled with Clamp/Cutting Belt Feed System & Nesting Capabilities.
The operator can set the machine feed distance ,speed ,daylight etc.,Once the machine have set,The machine will wrok autoamticly .It feed the material into the head of press,Then cutting .after cutting ,The cut-out parts are collected on the outboard side.
The machine can be used for die cutting the following material :abrasives, automotive interiors, composites, foam & packaging, footwear & leather goods, gaskets, medical, textiles & many other material :leather, rubber, EVA, PVC, cardboard, paper products, vacuum forming,plastic etc.,
Gerson also accept any custom built machinery for your production.welcome to contact us at any time.
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm |
| Cutting area(mm) | (500-3000)X(1000-3000)mm |
| Based on your material and die | |
| Example: 1600X600mm etc., | |
| Motor power | 1.5 to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
Gerson can make die cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,feeding type etc.,
