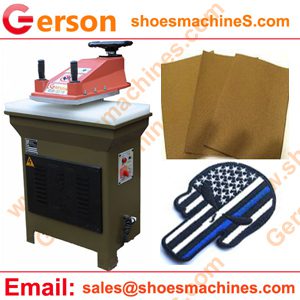

Clothing Fabric patch pocket cutting machine works perfectly in cutting out patch pockets, flap pockets, jetted pockets, coat pockets and many other clothing.
Key Feature:
1. The machine can die-cut out pocket flaps,lining and patch flaps etc.,from fabric materials with advanced die.
2. Layers of materials can be die-cut together.
3. The manual operation is very easy. Just put the die on the material, then the upper board will come down to do the cutting job once the button is pressed. Compared with that, auto feed and continuous feed are more convenient.
4. It can die-cut the same size because of cutting die mold knife. Different table size and cutting force are available.
5. Special specifications can be made to order .Any question ,please contact us immediately.
Model | GSB,GR,GRA,GRB serials |
Max cutting force(T) | 8Tons-500Tons or More |
Range between working table | 50-240mm (Upper to Bottom Table) |
Stroke Adjustment | 0-170mm |
Cutting table | 650×330mm to 3000mm×2500mm |
Based on your material and die | |
Example: 1000X500mm etc., | |
Cutting Head | 330×450 to More |
Motor power | 0.75kw to 22KW |
Electric Power | 220V/380V/415V,50-60hz etc., |
Machine Net weight (KG) | 400 to 16500 |
450 to 17500 |
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
