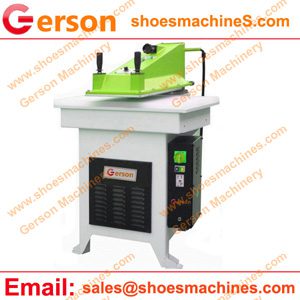

Gerson clicking press with rotating arm have 8 tons,10 tons,12 tons,14/15/16 tons,20 tons,22 tons,25 tons,27 tons,28 tons.
Clicking press also called clicking press machine which is die cutting machine with Rotating Arm that cuts shapes out of rolls of soft material: fabric,plastic,rubber, cardboard, or leather, using a sharp cutting dies.
The following is 20 ton and 27 tons model.If you need other models,please visit left “clicker press” .
1. The clicking machine body are welded by steel sheets with firm structure and light weight.
2. It is provided with automatic lubricating system to lessen abrasion and prolong service life.
3. Double hands operation function guarantee the safety of operators.
4. Double-direction oil way design provides stability and reliability.
5. Two modes such as microcomputer controller and PC electronic circuit are optional for controlling the lower limit position of stroke with high precision, flexibility and convenience.
|
Model |
GR-20C |
GR-27C |
GR-27C/1 |
GR-27C/2 |
| Max. cutting power |
ton. 20 |
ton. 27 |
ton. 27 |
ton. 27 |
| Maximum stroke(mm) |
80 |
100 |
100 |
100 |
| Cutting table(mm) |
900 x 430 |
900 x 450 |
1000 x 500 |
1200 x 500 |
| Arm width(mm) |
370 |
370 |
500 |
500 |
| Motor power |
HP. 1 |
HP. 1,5 |
HP. 1,5 |
HP. 1,5 |
| Net weight with oil |
Kg. 570 |
Kg. 780 |
Kg. 840 |
Kg. 910 |
| Sizes about (mm) |
1000 x 900 |
900 x 1000 |
1000 x 1000 |
1200 x 1030 |
| Sizes sea packing(mm) |
1050 x 1085 |
1050 x 1150 |
1150 x 1150 |
1350 x 1180 |
| Gross weight and volume with sea packing |
Kg. 640 |
Kg. 900 |
Kg. 980 |
Kg. 1055 |
