clicking press machine

Gerson clicking press machines are used for die cutting fabric,leather,gaskets, foam, medical, automotive, plastics, rubber, packaging, paper, labels, disposables,cork etc.,

clicking press machine also called clicking machine ,clicker press machine.These cutting press machine are easy and safe to operate with the operator having only to place the material on the bed of the press, put the cutting dies on the material and press the double operating buttons.

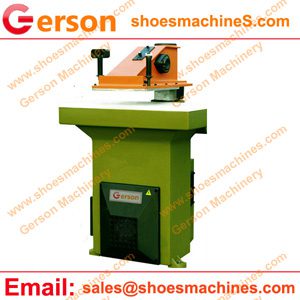

The following model is GRA-220 and GRA-270 .They are 22 tons and 27 tons.

clicking press machine
clicking press machine

Gerson also have 8 tons,10 tons,12 tons,14 tons,15 tons,16 tons,20 tons ,22 tons,27/28 tons.

And the cutting bead or area and swing arm or head size can be custom made.

1.Automatic stroke-end setting-up to use cutting knives of different heights without any adjustment.

2.Control push-buttons with built-in device for 5/10 of second maximum delay operation to ensure positive safety.

3.Two push-buttons and one potentiometer to set the cutting power.

4.The main control organs are covered by international patents.

5.The cutting force from 22 tons to 27 tons.

6.Three button handle is available.



Model Cutting Table UP Beam Head Max Pressure Net Weight
GRA-270L 1000×500 610mm 25T–245Kn 1050 (kg)
GRA-270M 1000×500 500mm 25T–245Kn 1030 (kg)
GRA-270C 900×450 500mm 25T–245Kn 900 (kg)
GRA-250L 1000×500 370mm 25T–245Kn 990 (kg)
GRA-250M 900×450 370mm 25T–245Kn 880 (kg)
GRA-220L 1200×500 500mm 22T – 216Kn 1060 (kg)
GRA-220M 900×450 370mm 22T – 216Kn 880 (kg)
GRA-220C 900×430 370mm 22T – 216Kn 630 (kg)

Electric Supply Voltage:  3 phases×440/415/400/380/220/200V, 50/60 Hz,

Single phase:110V/240V/220V, 50/60 Hz
