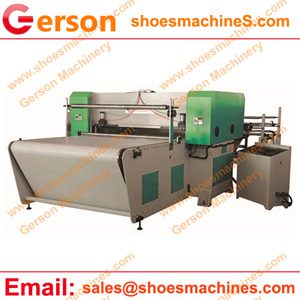

Clicker Press with Conveyor Belt Delivery System

Clicker Press with Conveyor Belt Delivery System is die cutting press machine with conveyor belt.The conveyor belt is feeding the material into press for cutting .

Clicker Press with Conveyor Belt Delivery System
Clicker Press with Conveyor Belt Delivery System

1.This press is for cutting sheet form material or roll form material and can be for single layer and muti-layers based on your production requirement.

2.The press  uses a special belt for heat to transfer, cut, and move the cut parts for picking .The power driven pinch roll on the infeed will help hold down the material.

3.The press is using top hydraulic parts and special hydraulic system .Equiped with four column guiding, double-crank self-balancing system, four-column blocking fine adjustment mechanism and hydraulic control system, which can guarantee the speed and accuracy of cutting job.

4.The press for die cutting the material and industy including:cork,fabric, foam, sponge, plastic, leather, rubber, EVA, PVC, cardboard, paper products, vacuum forming trays, home textiles, packaging materials, non woven, carpet, car cushion, felt, synthetic materials, and other non-metallic materials in various industries .

5.Gerson can built any press to meet your production requirement ,please contact for any further information.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(1000-3000)mm
Based on your material and die
Example: 1600X600mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make die cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,feeding type etc.,
