CLICKER PRESS TRANSPORT AND HANDLING
All the transit and installation area, plus the transport vehicle area must be carefully inspected before handling to ensure they are well clear of all objects and personnel. All obstacles must be removed before handling.
According to the transport request made by the customer, the die cutting machine is delivered on a pallet and covered with protective plastic film, or in an open or closed wooden case or crate. The plastic film will only protect the machine from damp and dust during transport; it cannot protect the machine against banging during handling operations. The press is bolted to the pallet or to the crate base in three points.
The machine can be safely handled and moved on the ground using a fork lift adequate for the machine weight (refer to the technical information paragraph).
Clicking press on pallet

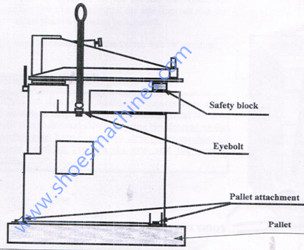

If the press to be raised is attached only to a pallet, the hoisting chains or cables must be attached to the eyebolts (Fig. 1) Never raise the machine by passing ropes or slinging straps around the mobile arm as this will damage the internal components, as well as leading to arm rotation, causing load oscillation which cannot be controlled and which provokes a serious danger for machine and personnel.Proceed slowly when beginning the initial raising operation to maintain the press in equilibrium without banging or swaying. Make sure that all personnel not directly involved in the manoeuvres are kept well clear of the area.
Never remove the safety block until the machine has been safely placed in its final position.
This lock stops the mobile arm from rotating during handling operations.
