Die Cutting Machine
38 Years+ Manufacturer
Quote Now

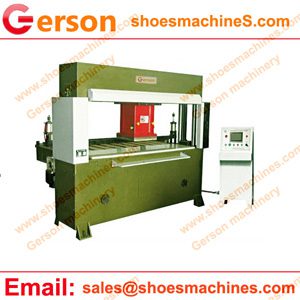

China cutting machine

Gerson machinery as a leading designer and manufacturer for cutting machine .Gerson focus on cutting machine more than 20 years.Now Gerson can design and manufacturing cutting machine according to customers detailed requirement and give custom build and service.

China cutting machine
China cutting machine

Now Gerson cutting machine can die cutting most soft ,semi-rigid material and some of rigid material :

1.swing arm cutting machine for small size dies.

2.Travelling head cutting machine for small or medium size dies.

3.Beam cutting machine for big area die size .

4.Kiss cutting machine for two or more layers material

The products and material:

Leather,Paper,Plastic,Abrasives, Carpet, Cork, Felt,Fiberglass, Floor Tile, Hardboard, Packaging and Gasket Material,Rubber, Shoe Materials,Sponge, Textiles etc.,

Gerson machinery have export the cutting machine to Europe,America,Asia,Africa,Australia etc.,

Model GRM(A)-25T to 200T
Max cutting force(T) From 25 Tons to 200 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting table width(mm) 1800~2500mm or more
Based on your material and die
Example: 1600X600mm etc.,
Cutting Head Movable trolley 500×500 to 1000x1000mm
Motor power 3kw to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
