Gerson carpet tile cutting machine is die cutting machine for carpet tile ,PVC Chair Mats,Door Mats,Enviro Polycarb,Chair Mats,Safety Mat,Rugs similar material and products.
The carpet tile cutting machine normal is beam cutting machine which have two kinds manual beam cutting machine and automatic beam cutting machine.Manual beam cutting machine is manual feeding cutting machine and automatic beam cutting machine is with auto feeding system cutting machine.

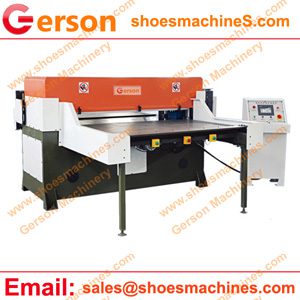

The following is automatic die cutting machine for carpet tile.
1.From the smallest 25 Ton to the largest 500 Tons.
2.Cutting are from 800x500mm to any size according material requirement.
3.Die Cut materials in single or multiple layers
4.Blade upward or downward cutting
5.Four column, with two cylinder construction
6.Double mechanical balancing system
7.Even cutting and full power across complete cutting area
8.Heavy duty construction
9.Low deflection
10.Two stage press closure reduces size variation or distortion in 12.thick or multi-ply material applications
11.Steel to steel cutting available with optional equipment
12.Accept customized requirement .
Option equipment tools:
1.Inboard and outboard material conveyors
2.Manual tool rails
3.Pneumatic adjustable tool rails
4.Board rails to clamp cutting boards to press head
5.Material feed rollers
6.Automatic knock-out systems
7.Material alignment
8.Automatic cutting pad shifter
9.Edge sensing
10.Automatic tool changing
11.Tool racking
12.Material feed gantries and many other options.
Model | GRB(C)-25T to 500T |
Max cutting force(T) | From 25 Tons to 500 Tons |
Range between working table | 50-240mm (Upper to Bottom Table) |
Stroke Adjustment | 0-170mm |
Cutting area(mm) | (500-3000)X(1000-3000)mm |
Based on your material and die | |
Example: 1600X600mm etc., | |
Motor power | 1.5 to 22KW |
Electric Power | 220V/380V/415V,50-60hz etc., |
Machine Net weight (KG) | 1600 to 16500 |
1700 to 17500 |
Gerson can make die cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,feeding type etc.,
