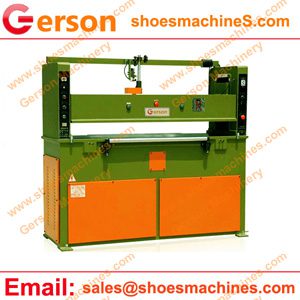

Carbon Fibre die cutting machine

Gerson carbon fibre die cutting machine is the machine that die cut carbon fibre material including:Carbon Fiber Sheets,carbon fiber woven,cloth carbon fiber,carbon fiber fabric etc.,

Carbon Fibre die cutting machine
Carbon Fibre die cutting machine

1.The machine die cut carbon fibre in sheet or in roll processed in single or multiple layers.

2.The machine can cut out any carbon fibre shapes with the formed cutting knife/die , The knife or die can be mounted to the upper beam, or on the table blade up or also can be hand placed upon thecarbon fibre material.

3.It is hydraulic driven ,easy to use,the high quality of hydraulic components make sure high quality of the machine.

4.Feed Systems Available: Manual sliding Tables,Single and Dual Sliding Tables,Roll Feed Systems,Clamp Feed Systems etc.,

5.Gerson could design and manufacture according to customer production requirement.

Model GRBC-25T to 500T
Max cutting force(T) From 25T to 500
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
1800 to 18500
