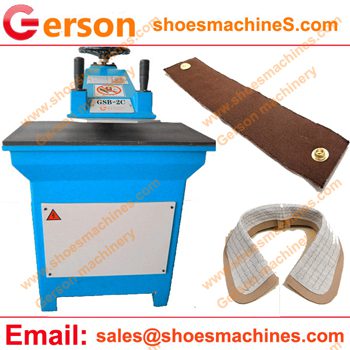

Canvas collar cuff die cutting machine

Canvas collar die cutting machine is die cutitng machine for punching out canvas collar,Cut Collar,Shirt Collar, Shirt Cuff,Collars, Pocket, plastrons, epaulettes, waistbands etc.,

Canvas collar cuff die cutting machine
Canvas collar cuff die cutting machine

1.The die cutting machine Gerson manuafactured isextensively used in the production of shirts, t-shirts and trousers. The offered range is especially used for cutting collars, pocket and cuffs it is also can be die cutting any pieces of fabric ,leather ,paper ,rubber etc., material sheet or rolls.

2.It is a good equipment for clothes factory .If you want to die cut any similar material ,this die cutting press machine is your good choise.It is also could used for cutting collar,bra etc.,  At the same time,it  is also the most efficient equipment for label printing machinery company.

3.The die cutitng  machine is easy for operation by worker’s double hand.And it is very little noise because it is hydraulic driven system .

4.Gerson can design and manufactured knife die molds based on your products requirement.

Model GSB-2C/10/12/14/15/16/18/20/25
Cutting Force 10,12,14,15,16,18,20,25 Tons
Sway Arm Width 330X450mm,350X450mm,450X550mm
Stroke Adjustment 5-75mm
Distance Between Upper Table And Lower Table 60-140mm
Table Area 900X400mm,1000X500mm
Electric Supply Voltage 3×440/415/400/380 /220V, 50/60 Hz
Motor Power 0.75kw,1.1kw,1.5Kw
Packing Size(LXWXH) 1100X1100X1700mm
Weight 500Kg/650kg/1000kg/1100kg
Hydraulic oil (46#) 50 Liters
