Die Cutting Machine
38 Years+ Manufacturer
Quote Now

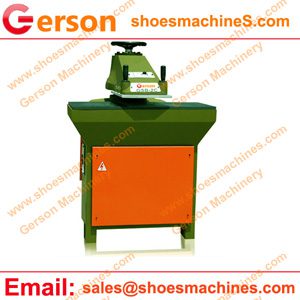

Bra Cup Cutting Machine

Gerson die cutting machine for bra cup which the material including Tricot, Spandex, Spanette, Latex, microfiber, satin, Jacquard, foam, mesh, and lace,

Bra Cup Cutting Machine
Bra Cup Cutting Machine

The swing arm cutting machine is good for die cutting bra cup.

1.The beam is of light alloy for easy swinging.
2.Availability of two sizes makes the machine adaptable for all bra factory requirements.
3.Production increases from 6-10% have been noted over mechanical clicking machines
4.From 10 tons to 25 tons cutting power for factory choice.
5.Also other swing arm press models for choice: GRA model and GR models.

Model GSB-2C/10/12/14/15/16/18/20/25
Cutting Force 10,12,14,15,16,18,20,25 Tons
Sway Arm Width 330X450mm,350X450mm,450X550mm
Stroke Adjustment 5-75mm
Distance Between Upper Table And Lower Table 60-140mm
Table Area 900X400mm,1000X500mm
Electric Supply Voltage 3×440/415/400/380 /220V, 50/60 Hz
Motor Power 0.75kw,1.1kw,1.5Kw
Packing Size(LXWXH) 1100X1100X1700mm
Weight 500Kg/650kg/1000kg/1100kg
Hydraulic oil (46#) 50 Liters
