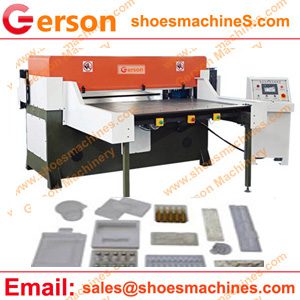

Blister packing plastic sheet die cutting press machine is adopted to die cutting vacuum formed plastic sheet, which is made and molded in extremely high temperature. These plastic sheet is making for blister packing or other packaging.
Key Feature:
1. These materials including ABS, Acetal Copolymer, Delrin®, Delrin® Glass Filled, Nylon 6/6, 6, 6/12, Cast Nylon,Teflon, PTFE, PEEK, Ultem, Polysulfone, PVC, Lexan, Acrylic, Polyethylene, LDPE, HDPE, UHMWPE etc. for making skin packs, sheets of blister packs, thermoformed parts, corrugated board and a variety of other parts such as plastic container, tray, packing can be cut by the machine.
2. All shapes can be cut out by relevant cutting dies, which can be attached to the upper beam or just on the table blade.
3. The sturdy four-column framework and inner balance mechanism make for a uniform distribution of cutting power to guarantee that each cutting operation reaches the same depth regardless of the position.
4. The machine has a great advantage that it has auto single or double sliding table to simplify the feeding operation.
5. The cutting table size and many other aspects can be adjusted or changed in refer to customer’s request.
| Model | GRBC-25T to 500T |
| Max cutting force(T) | From 25T to 500 |
| Distance between upper press board andworktable(mm) | 50-240 |
| Cutting area(mm) | 1250×600,700,800,900,1000,1200, 1500 |
| 1470×600,700,800,900,1000,1200, 1500 | |
| 1600×600,700,800,900,1000,1200, 1500 | |
| Motor power | 1.5 to 22KW |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 | |
| 1800 to 18500 |
