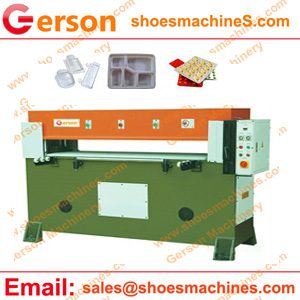

Gerson Blister card packaging die cutting machine is the cutting equipment for making blister card packaging .It is also for making clamshell trays,Medical and dental instrument trays,Packaging inserts, Food packaging trays,Shipping and storage trays, Material handling trays etc.,
1.This die cutting machine can cut out any shapes of Blister card packaging with the normal cutting knife/die .Gerson also can make the die with the machine to meet the requirement for making Blister card packaging
2.Automatic or manual sliding tray table feed the Blister card packaging sheet into the cutting bed ,The the machine beam will be moving down to cut Blister card packaging sheet under hydraulic force.After cutting ,The upper beam will move back ,Then automatic or manual pull out the sliding table .Then the worker pick up the finished Blister card packaging .
3.The machine uses high quality hydraulic system and top component for long life using.
4.Cutting bed size and cutting force can custom build according to the foam size and cutting-out shape requirement.
5.More information or requirement ,welcome to contact Gerson for more details.Gerson accept any sepecific requirement.
| Model | GRBC-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Distance between upper press board andworktable(mm) | 50-240 |
| Cutting area(mm) | 1250×600,700,800,900,1000,1200, 1500 |
| 1470×600,700,800,900,1000,1200, 1500 | |
| 1600×600,700,800,900,1000,1200, 1500 | |
| Motor power | 1.5 to 22KW |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
