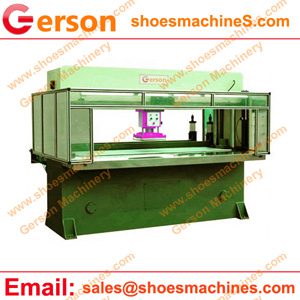

Bicycle seat cover die cutting machine

Gerson bicycle seat  cover die cutting machine is the cutting machine for making bicycle seat cover ,bicycle seat pad,saddle cover,These bicycle seat cover are including  fabric bike seat cover,leather bike seat cover,PVC bike seat cover,polyester bicycle seat cover etc.,

Bicycle seat cover die cutting machine
Bicycle seat cover die cutting machine

1.Various models of die cutting machine for making  different bicycle seat cover or similar products.

2.The die cutting machine can die cut in sheet or in rolls .

3.The die cutting machine can be for cutting single layers or mutiply layers.

4.It die cut with the formed cutting knife/die by manual feed or automatic feed.

5.The die cutting machine is hydraulic driven type with four pillar havey duty structure and The central oil supply automatic lubricating system which  can guarantees precision cutting and long time service life.

6…Option for the machine ,such as the  Auto sheet/roll  loading,Cut parts knock out units,Auto collection of cut parts in the head or to a side conveyor,head rotation for nesting cut parts etc.,

7.Any special requirement ,welcome to contact us.We could do custom build.

Model GRBC-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
