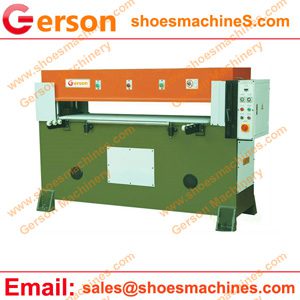

Gerson bath applique die cutting machine is for making the bath rug,bath carpet,Bath Tub Applique,These are made of the material such as rubber , vinyl ,PVC etc., Gerson machinery can also die cut any similar material or products such as Anti slip Rubber flocking mat ,bathroom rug,bedroom mat ,home rug,cooking rug, door mat, table under rug,floor rug etc.,
1.It is very simple to use .The cutting tool/die/knife such as strip steel, wood forme or forged steel can be laid on the tray or mounted to the upper beam, or on the table blade up .
2.It can die cut Sheets or rolls of material which can be processed in single or multiple layers.
3.Available as single or double manual work table, or automatic single motorized sliding table or double motorized sliding table. The double working table systems have independent controls and individual knife setting on each tray for maximum output.
4.Also the machine can be feed by feed table/conveyors for progressive cutting,material feed rollers,Extended Tray Feed System etc.,
5.The cutting force can be from 25 tons to 500 tons ,and the cutting table 1250*500 to more any size according material size.
6.can build to suit your production requirements – we welcome your request for a machine specific to you.
Model | GRBC-25T to 500T |
Max cutting force(T) | From 25 Tons to 500 Tons |
Distance between upper press board andworktable(mm) | 50-240 |
Cutting area(mm) | 1250×5/600,700,800,900,1000,1200, 1500,2000 |
1470×5/600,700,800,900,1000,1200, 1500,2000 | |
1600×5/600,700,800,900,1000,1200, 1500,2000 | |
Motor power | 1.5 to 22KW |
Machine Net weight (KG) | 1600 to 16500 |
1700 to 17500 |
