baseball cap die cutting machine

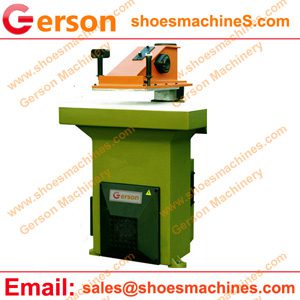

Gerson die cutting machine for baseball caps.The baseball caps are generally made of cotton, cotton blends, jersey mesh, wool, acrylic/wool blends, and moisture wicking fabrics.

admin	beam press	beam cutting machine, swing beam cutting machine, swing beam cutting press	 —No comments Published 2013/04/13 Select baseball cap die cutting machine baseball cap die cutting machine
admin beam press beam cutting machine, swing beam cutting machine, swing beam cutting press
—No comments
Published
2013/04/13
Select baseball cap die cutting machine
baseball cap die cutting machine

This swing arm cutting machine type is good for caps production.

Also have others swing arm cutting machine GSB-8/10,GSB-2C,GR-20/27 etc.,

Three different cutting pressures for your custom cutting choice.These will enable the application of different sized (surface area) dies with virtually no repeating adjustments.So certainly will Improve your cutting efficiency with multi production.

Model GRA-220/3 GRA-270/3 GRA-270M/3 GRA-270L/3
Maximum cutting force 22T 27T 27T 27T
Table area 900×430mm 1000×500mm 1000×500mm 1000×500mm
Swing arm width 370mm 370mm 500mm 610mm
Cutting stroke 90mm 90mm 90mm 90mm
Motor power 1.1KW 1.5KW 1.5KW 1.5KW
Electric Supply Voltage 3×440/415/400/380/220/200V, 50/60 Hz
Single phase 240V/220V, 50/60 Hz
Packing size 1050×1000×1500mm 1150×1200×1500mm 1150×1200×1500mm 1150×1200×1500mm
N.W(with oil) 650kg 960Kg 1050kg 1200kg
G.W 740kg 1120Kg 1210kg 1360kg
