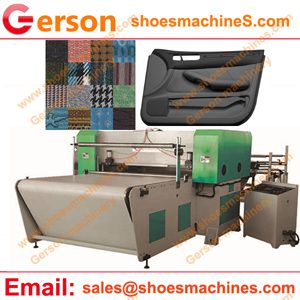

Automotive Interiors upholstery cotton fabric die cutting machine

Automotive Interiors upholstery cotton fabric die cutting machine is the large format die cutting machine for cutting out automotive Interiors upholstery cotton fabric,It is also can die cut out the material Tweed, Velvet, Suede, Hounds Tooth and Velour upholstery fabrics for your auto interior upholstery needs.

Automotive Interiors upholstery cotton fabric die cutting machine
Automotive Interiors upholstery cotton fabric die cutting machine

1.It is the die cutting machine which can die cut out any shapes for making Automotive Interiors upholstery  or other similar products by custom die mold.

2.The machine can die cut any material or products such as Cloth,Vinyl,Leather,Wool Broadcloth
,Embossings,Headliners,Door Panels,Vinyl Tops,Carpet Sets,Trunk Lining,Windlace

3.The machine can Automatic feed roll or sheet material and continuous cutting for large quantity production. Gerson also have the other model with manual feed material if you only need small production.

4.The die  cutting machine is using hydraulic system. With four post and mechanism of douoble-cylinder and four columns balanceable connected staffs, which can make sure the cutting pieces places identical.

5.Gerson can design and manufacture any custom table size ,working pressure ,feed system etc.,based on your request.Welcome to contact us.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(500-3000)mm
Based on your material and die
Example: 1600X900mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500
