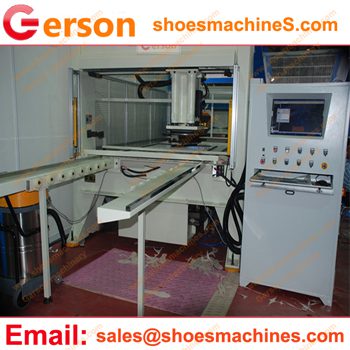

Automatic travelling rotary head die cutting machine

Automatic travelling rotary head die cutting machine is one of traveling head cutting machine with rotary head or rotating head .It is also known as rotating head die cutting machine .

Automatic travelling rotary head die cutting machine
Automatic travelling rotary head die cutting machine

1.Automatic travelling rotary head die cutting machinecan die cut out any shapes by the cutting die .The cutting die mounted under the rotary head.

2.Automatic travelling rotary head die cutting machine can die cutting the material in sheet material such as  Eva/epe/sponge Foam, plastic ,leather ,cork ,sandpaper or roll material such as fabric ,cloth foam roll .

3.The rotary head can be rotating for cutting which can save the material and doing very quickly saved labor cost.It is suitable for large-scale die cutting factory production capacity operations.

4. The motion cutting cutting is controlled by the cross switch and the travel switch to ensure safety .The rotary head moved to improve work efficiency.

5.Welcome to contact us for further information ,or any custom build ,we could design and manufacturing any die cutting machine.

Model GRM(A)-25T to 200T
Max cutting force(T) From 25 Tons to 200 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting table width(mm) 1800~2500mm or more
Based on your material and die
Example: 2200X600mm etc.,
Cutting Head

Movable trolley

500×500 to 1000x1000mm
Motor power 3kw to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
