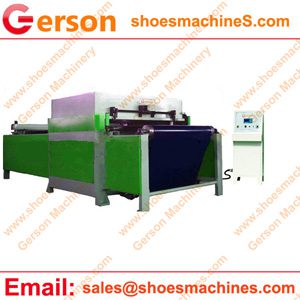

Automatic sliding pinch and grab feed cutting machine

Automatic sliding pinch and grab feed cutting machine  is one of Gerson autoamtic die cutitng machine .The full head of this cutting press contributes a lot in cutting large parts from semi-hard raw materials.

Automatic-sliding-pinch-and-grab-feed-cutting-machine
Automatic-sliding-pinch-and-grab-feed-cutting-machine

Key Feature

  1. Compared with normal cutting machine, this one is more high-tech and has a full set of advanced equipment. The strong four-column structure is the basic. Additionally, double cylinders make sure that the power is strong enough to support the cutting operation. Besides, the precise auto balance system can guarantee that all the products are equaled qualified.
  2. As the upper beam has the same length as the cutting table, materials no longer than that can all be cut.
  3. There are many feed type for selection: manual or powered sliding tables, cutting belt and pinch and grab material feed system, extended table feed system etc.
  4. Sheet or rolled materials of many layers can be cut by the die attached to the upper beam to achieve a more convenient operation.
  5. We are looking forward to cooperating with you in the near future.
Model GRB(C)-25T to 1500T or more
Max cutting force(T) From 25 Tons to 1500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
