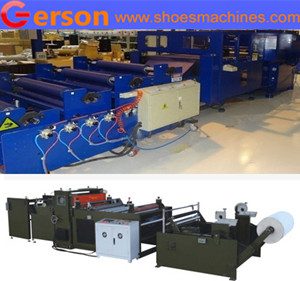

Automatic roll material die cutting machine

Automatic roll material die cutting machine  is designed by Gerson machinery for full cutting and semi full cutting continuous operation of a variety of roll material die cutting. It is widely used to the electron industry, packaging industry and fabric industry and other roll material die cutting operations.

Automatic roll material die cutting machine
Automatic roll material die cutting machine



1.Servomotor controls automatic roll material and cutting system.

2.High precision  mechanism system and Positioning accuracy.

3.High automation feeding and cutting speed.

4.  Roll belt conveyor

5. Independent touch-screen interface for operation.

6.More information contact Gerson sales department.

Model GRBC-25T to 500T
Max cutting force(T) From 25T to 500
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
1800 to 18500
