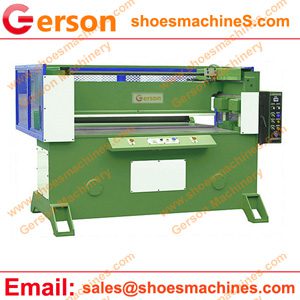

Automatic Parallel-Moving Beam Precision Four Column Die Cutting Machine

Gerson Automatic Parallel-Moving Precision Four Column Die Cutting Machine is also know as receding head press machine that used for cutting the material such as cardboard, textiles, leather products, plastic materials , flooring materials, packing foam,EVA,sponge,PVC,fabric etc.,



Automatic Parallel-Moving Beam Precision Four Column Die Cutting Machine
Automatic Parallel-Moving Beam Precision Four Column Die Cutting Machine

1.This die cutting machine is built in hydraulic system with high quality spare parts, accurate and silent, extremely rigid construction with mechanical balancing keeps the head and bed parallel during the cutting stroke.

2.Not like fixed beam press ,the advantage of such a machine is that  beam of this die cutting machine  can move backward or forward automaticly by  motor driven.So that have good access and visibility for the operator and the entire cutting area free and enabling the operator to remove the cut-outs.

3.This Precision Four Column Die Cutting Machine is good for die cutting large width material in sheet or in rolls such as the material: fabric ,synthetics, textiles, leather, gaskets, foam materials, plastics, carpet, felt, rubber or any similar material.

4.A variety of feed systems can be specified to enhance productivity even further: such as roll material feed systems ,automatic sheet feeder and more other optional equipments etc.,

5.Any special or specification welcome to contact Gerson ,we could build any custom machine for the production.



Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
