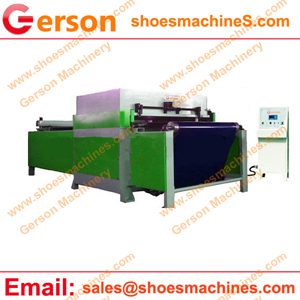

Automatic non metal sheet/roll die cutting hydraulic press machine

Continuous non metal sheet/roll die cutting hydraulic press machine designed and manufacturer by Gerson ,it is great for large volume production .

Automatic non metal sheet/roll die cutting hydraulic press machine
Automatic non metal sheet/roll die cutting hydraulic press machine

1.This hydraulic press machine is for die cutting material including:leather sheet,fabric sheet,textile sheet,paper sheet,plastic sheet ,rubber sheet or these material in rolls.

2.Automatic lubrication system, the machine is lubricated automatically during operation. This design can reduce abrasion;

3.Feeding system option: Single and double automated sliding table,inboard pinch roll & conveyor belt feed system,inboard clamping beam cutting belt.

4.Cutting force from 25 tons to 500 tons ,and cutting table size can custom build.Any special requirement welcome.

Model GRBC-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
