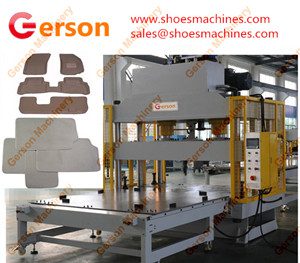

Automatic Feed Car Interior Floor Carpet Die Cutting Press Machine

Gerson Automatic Feed Car Interior Floor Carpet Die Cutting Press Machine is the die cutting machinery for making car Interior  sheet ,floor carpet ,seat cover carpet,parcel tray carpet,trunk mat,heat-insulating and deadening felt ,sound proof sheet for floor carpet etc.,

Automatic Feed Car Interior Floor Carpet Die Cutting Press Machine
Automatic Feed Car Interior Floor Carpet Die Cutting Press Machine

1.This automobile floor carpet cutting machine using four cylinders and  six-column double-link automatic balancing mechanism that ensure  the cutting depth precision at each cutting position is the same.

2. When cutting materials of multiple layers,there is no error between the uppermost layer and lowermost layer.

3.Automatic sliding table for sheet feeding ,human-machine interface, PLC programmable .

4.The special die setting mechanism makes the stroke adjustment simple and accurate when changing the die cutter.

5.The central automatic lubricating system guarantee the machine precision and prolong service life of machine.

6.Gerson can design and manufacture the machine to suit your production requirements.Any question ,please contact Gerson.

Model GRBC-25T to 500T
Max cutting force(T) From 25T to 500
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
1800 to 18500
