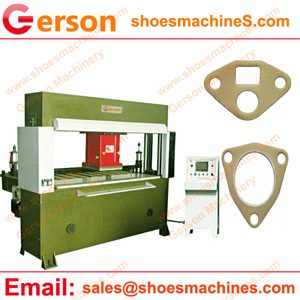

Automatic Exhaust Gaskets Cutting Machine

Automatic cutting machine is widely used for gaskets materials which including PTFE
(Teflon),EPDM,Rubber,synthetic rubber etc.

Automatic Exhaust Gaskets Cutting Machine
Automatic Exhaust Gaskets Cutting Machine

The advantages of this Automatic Exhaust Gaskets Cutting Machine are following:
1.Digital control system of “PLC + coder” human-machine interface is designed to
realize automatic feeding, pattern arrangement and cutting. You can choose five different
kinds of arrangement figures for high pecision of automatically setting cutting times. The
positioning precision is about +- 0.2mm to tatolly save materials, enhance work efficiency
and reduce labor intensity.
2.PLC program control center is posssension of memory function for the settings of
operation instructions so as to remember the power failure or power-cut after working so
that the operation can be facilitated for the next time.
3.Designed double oil cylinders drive, four-column guiding and automatic balancing to
keep the same cutting depth for each time.
4. Operation modes are here for your choice including automatic, semiautomatic and
manual operations,which are free and flexible.
5.The cutting head is able to realize automatic transverse movement and automatic
positioning.Electromagnetic suction disc is adopted to fix the die cutting. the upper and
lower die cutters can realize cutting freely with convenient operation without setting any
die cutters.
6. The automatic lubricating system is designed for high precision and long service life.

Model GRM(A)-25T to 200T
Max cutting force(T) From 25 Tons to 200 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting table width(mm) 1800~2500mm or more
Based on your material and die
Example: 1600X600mm etc.,
Cutting Head

Movable trolley

500×500 to 1000x1000mm
Motor power 3kw to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make the automatic exhaust gaskets cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
