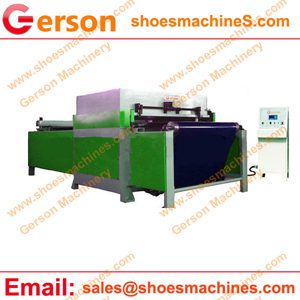

Automatic belt feeder continuous die cutting machine

Gerson automatic belt feeder continuous die cutting machine is mainly designed  for automatic feed soft and semi-rigid material such as:leather, textiles, plastics, rubber, foam, composites, paper and paperboard,rubber,plastic,cork, felt etc.,

Automatic-belt-feeder-continuous-die-cutting-machine.
Automatic-belt-feeder-continuous-die-cutting-machine.

1.Four strong post/column ,doubl oil cylinders,strong rugged mechanical linkage mechanism that ties the two, or more, operating cylinders together, preventing them from misalignment.

2.Automatic lubricating system ensures machine precision and prolongs the life of four column beam cutting machine.

3. Automatic continuous cutting belt System with a special nylon belt that not only serves as the transport mechanism, carrying the material into and out of the cutting area, but also provides the very surface on which the cutting action takes place.

4.The machine have virous cutting width and different cutting force to meet most soft and semi-rigid material.

5. Many year experienc and strong R&D center allow us to tailor a specific size and tonnage unit to handle different applications.Welcome to contact Gerson ,if you have any further question or requirement.

Model GRBC model
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500,2000,2500,3000
1600×600,700,800,900,1000,1200, 1500,2000,2500,3000
2000×600,700,800,900,1000,1200, 1500,2000,2500,3000
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
