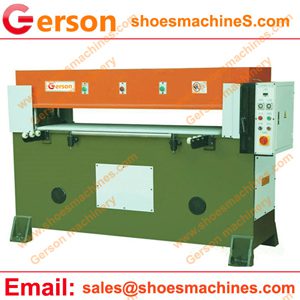

Automatic Balancing Four Column Hydraulic Cutting Machine

Gerson Automatic Balancing Four Column Hydraulic Cutting Machine is die cutting machine for cutting Mess production in leather, bag, paper,rubber,plastic good and etc.,

Automatic Balancing Four Column Hydraulic Cutting Machine
Automatic Balancing Four Column Hydraulic Cutting Machine

1.Automatic Balancing Structure with 4-Column with automatic balancing design ensures the stable cutting output.Automatic lubricating which can increase the machine use life

2.Double Hydraulic Cylinders which can ensure the machine with large and smooth cutting process

3.One Stroke Operation which the Stroke request two hands operation and one emergency stop .

4.Automatic feed available.There have automatic feed material for continuous cutting available depending on your production.

5.Product shape is cut according to cutting tool shape. Easy to change cutting tool .And Gerson can custom built any cutting tool.

Gerson accept any custom built cutting machine based on your request.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
