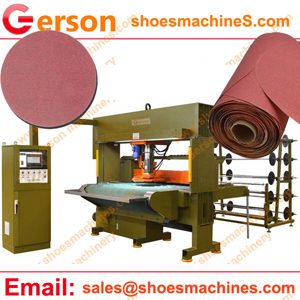

Automatic Abrasive Disc Cutting Machine For Sandpaper is Gerson manufacturing die cutting press machine for making cutting Sanding Sponge, Sanding Discs, Flap Discs, Fiber Discs, Sanding Belts, Velcro Disc,
And the material can be non-woven felt, velcro backing, and pressure sensitive adhesive(PSA) release paper backing of abrasive sandpaper material in Coated Abrasive Cloth Roll,Sand Cloth Roll,Emery Cloth Roll,sanding cloth roll,mesh abrasive cloth roll etc.,
The machine have manual feed the material and autoamtic feed the material in sheet or roll .
This Machine is mainly used on Punching Abrasive paper Disc in shape of Round. Triangle, Square . Infact ,can die cut our any shapes only make the shape of cutting die knife.
It can be die-cut part auto knock out & stacking system will stack cut parts to preset quantity ready to be packed. This function can save several workers.
The size ,cutting force and all can custom build based on your material and production requirement.
Model | GRM(A)-25T to 200T |
Max cutting force(T) | From 25 Tons to 200 Tons |
Range between working table | 50-240mm (Upper to Bottom Table) |
Stroke Adjustment | 0-170mm |
Cutting table width(mm) | 1800~2500mm or more |
Based on your material and die | |
Example: 1600X600mm etc., | |
Cutting Head Movable trolley | 500×500 to 1000x1000mm |
Motor power | 3kw to 22KW |
Electric Power | 220V/380V/415V,50-60hz etc., |
Machine Net weight (KG) | 1600 to 16500 |
1700 to 17500 |
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
