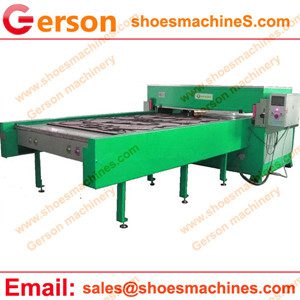

Automated Incremental extended slide table feed cutting machine

Automated Incremental extended slide table feed cutting machine is designed for efficient cutting  for huge sheet material.It is  equiped with large multi-cavity cutting die incremented through the press for die cutting large sheet material .such as  sponge/abrasive  ,leather,foam ,plastic ,cork,fabric,gasket,foam pad etc.,

Automated Incremental extended slide table feed cutting machine
Automated Incremental extended slide table feed cutting machine

1.This kind of diecutting machine both have  manual or fully automatic  feed and die cutting  to meet your production .

2.Automated Incremental extended slide table feed cutting machine used for automatic operation from sheet material automatic feeding, guiding before cutting to ensure the material is the correct position, and then a conveyor belt to output the sheet.

3. The machinery is designed with two hydraulic cylinders coupled with a synchronization bar – the bar includes a crank gear to synchronize the movement of the two hydraulic cylinders. So this mechanical balancing system guarantees that the maximum cutting force of the press and keeps the cutting base and upper platen parallel even under uneven loads.

4.Four column ,Hydraulic driven,double-cylinders,four-columns,self-balancing connecting rod  make sure the high precision when diecutting .

5.We can build to suit your production requirements. Gerson welcome your request for a machine specific to you.

Model GRBC-25T to 500T
Max cutting force(T) From 25T to 500
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
1800 to 18500
