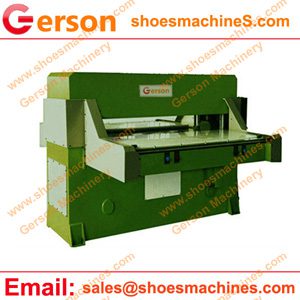

Auto Balance Hydraulic Full Head Cutting Machine

Gerson Auto Balance Hydraulic Full Head Cutting Machine is one of die cutting machine for die cutting medium and large material such as  plastics, wood panel, cork, felt, fabrics,  paperboard,foam,composite these material are used in many industry :Aircraft, Automotive,Gasket,packaging,Pocket Book ,Leather Goods,Printing,Puzzle & GameShoe, Boot & Slipper , Textile  etc.,

Auto Balance Hydraulic Full Head Cutting Machine
Auto Balance Hydraulic Full Head Cutting Machine

1.Two Independent hiqh quality cylinders, operating through a four column guide mechanism provide the motive power.
2.Hydraulic driven reduces any shock and minimizes noise.Easy operation set up and speed to meet changing production schedules.
3.Automated self-lubrication system continuously lubricates the balancing mechanism make sure the high precision and long life of the machine.
4.It can die cut one layer or multi layers in sheet or rolls.Manual feed or automatic feed .Single or Double , Manual or Automatic slide table.
5. Any larger head and bed sizes are available or Any special requirement can custom build.

Model GRB-25(30) GRB-35(40) GRB-50 GRB-60 GRB-80 GRB-100 GRB-150(200) GRB-300(400,500)
Max cutting force(T) 25T,30T 35T,40T 50T 60T 80T 100T 150T, 200T 300T,400T.

500T or more

Distance between

upper press board and

worktable(mm)

50-180 50-240 50-240 50-240 50-240 50-240 50-240 50-240
Cutting area(mm) 1250×500 1250×6001250×710 1250×800 1250×800 1250×800 1250×900 1250×1000 1250×1500
1470×500 1470×6001470×710 1470×800 1470×800 1470×800 1470×900 1470×1000 1470×1500
1600×500 1600×6001600×710 1600×800 1600×800 1600×800 1600×900 1600×1000 1600×1500
Motor power 1.5KW 3KW 4KW 5.5KW 7.5KW 7.5KW 11KW 22KW
Electric SupplyVoltage 3 phases x440/415/400/380/220/200V, 50/60 Hz
Machine Net weight (KG) 1400 1700,1800 2800 3500 5000 6500 9000 12000
1500 1800,2000 3200 3800 5400 7000 9500 13000
1700 2000,2200 3400 4200 5800 7500 10000 14000
 Gerson could design and manufacture according to customer production requirement.
