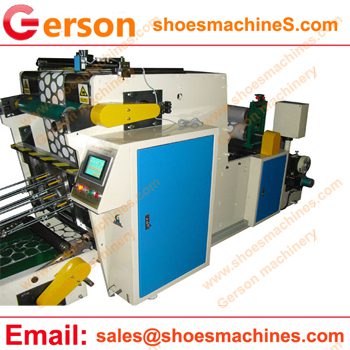

Aluminum foil die cutting machine is the overall machine form can be completed from the unwinding,reversing,traction,embossing,fixed or tracking positioning traction,punching/cutting,collecting the finished product,-collect waste all function in one machine.
It is also for cutting the similar products such as for self-adhesive, EVA, double-sided adhesive, electronic, mobile phone pad, 3M adhesive, aluminum plastic cover, pressure sensitive gasket, PE gasket, pump head PE gasket, foam gasket, bottle cap inner gasket, anti-adhesive Processing equipment for dust cutting, heat-insulating materials, anti-vibration products, adhesive products, backlights, etc. (full-cutting, kiss-cutting), creasing, automatic waste collect etc.
1.The whole machine is a steel wall panel frame structure with steel plates on both sides, the door plate is iron and the upper cover is stainless steel plate.
2.Unwinding adopts 3″ gas rising shaft and uses electromagnetic brake to control tension.
3.Adopt synchronous motor screw joint, linear guide rail correction base, photoelectric tracking correction.
4.A part of the embossing roller of embossing, customized according to the customer’s pattern, the layout of the printed materials and the drawing of the mold are produced by the supplier according to the sample, and are produced after confirmation by the customer. The embossing roll is in the form of an all-metal engraving roll that can be used for life.
5.Unwinding traction DC motor control.Motion motor (main motor is Taiwan brand, frequency conversion control, inverter )
6.Feeding is controlled by servo motor fixed length control or printed pattern color mark tracking and fixed length control.The tracking platform uses a movable alignment photoelectric stand.
7.The punching part is driven by the main machine to punch the mold in a horizontal direction, and is equipped with a finished guide collector, which can be collected in a stack.
8.The waste is collected synchronously by motor, and the traction speed is consistent with the speed of waste collection, so that materials with thinner or narrow waste materials can be smoothly produced, improving adaptability and stability. Dedicated waste conveyor belt form.
9.The control part adopts touch screen control (Hatek), and the single operation box design has the following functions: length, speed, quantity, alarm, emergency stop, photoelectric tracking, and number of shutdowns.
10.Rolling bearings are used for the drive shaft, guide roller and tension. The guide roller is hardened.
11.One mold: one male and female mold, four-column structure, and slow wire processing. The number of discharges at a time is based on the actual layout of the product size. The mold can be detached, the surface of the master mold can be repeatedly ground and can be used for life.
Remarks: The molds provided by the company have been very reasonable after many years of research, mainly because the use of mold materials is quite special. It is recommended that customers purchase new molds in the company as much as possible.
12.PLC and electrical control. (Gerson company has all intellectual property rights to the equipment, and the mechanical structure, electrical control, software settings, etc. of the equipment are stored in files to facilitate future inspection and maintenance.
Model: Gerson GBD
Material diameter: ≤600 mm
material max width: 600 mm
Cutting speed: 180 times / min (MAX)
Punching accuracy: ± 0.15 mm
Punching thickness: 0.03–0.5mm
Punching number: 3~7 pieces (according to the actual mold)
Collector: Multi-channel accumulation (according to the actual mold)
Total power: 8Kw
Total quality: 1800Kg
Overall dimensions: 3300x1320x1510mm
Can custom build based on your request.
