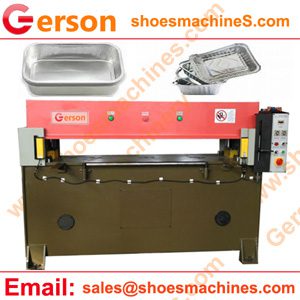

Aluminium-foil paper cover die cutting machine

Aluminium-foil paper cover die cutting machine is applicable to die cut Aluminum Foil Board, Foil Paper Cover, and Laminated Foile tc.,

Aluminium-foil paper cover die cutting machine
Aluminium-foil paper cover die cutting machine

Key Feature
1. Die can be placed whether under the beam or attached to the sliding platform to cut out all kinds of shapes.
2. The machine works precisely on account of advanced hydraulic system, double oil cylinder and four-column structure.
3. The machine is lubricated regularly to extend service life and promote accuracy.
4. Two feeding modes: manual and automatic type.
5. Cutting pressure and the other parts can all be specially designed considering your needs.

Model GRB-25(30) GRB-35(40) GRB-50 GRB-60 GRB-80 GRB-100 GRB-150(200) GRB-300(400,500)
Max cutting force(T) 25T,30T 35T,40T 50T 60T 80T 100T 150T, 200T 300T,400T.500T or more
Distance betweenupper press board andworktable(mm) 50-180 50-240 50-240 50-240 50-240 50-240 50-240 50-240
Cutting area(mm) 1250×500 1250×6001250×710 1250×800 1250×800 1250×800 1250×900 1250×1000 1250×1500
1470×500 1470×6001470×710 1470×800 1470×800 1470×800 1470×900 1470×1000 1470×1500
1600×500 1600×6001600×710 1600×800 1600×800 1600×800 1600×900 1600×1000 1600×1500
Motor power 1.5KW 3KW 4KW 5.5KW 7.5KW 7.5KW 11KW 22KW
Electric SupplyVoltage 3 phases x440/415/400/380/220/200V, 50/60 Hz
Machine Net weight (KG) 1400 1700,1800 2800 3500 5000 6500 9000 12000
1500 1800,2000 3200 3800 5400 7000 9500 13000
1700 2000,2200 3400 4200 5800 7500 10000 14000
 Gerson could design and manufacture according to customer production requirement.
