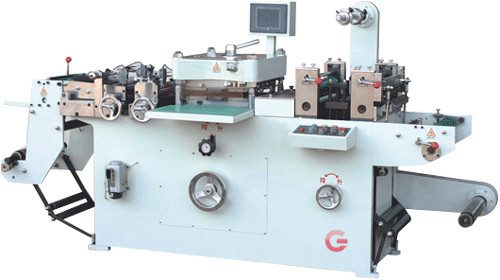

Adhesive Label kiss Die cutting Machine

This Gerson kiss die cutting machine for Adhesive Paper,Adhesive Label.

Characteristics:

This is a kind of flat-bed die cutting machine with high precision, whose material-going is controlled by servo motor. The three photoelectric eyes do the web guiding job. Die cutting, laminating, waste rewinding and sheeter (or rewinding) can be finished in one process. It is applicable to die cut free paper adhesive tape, polyester film trademark and laser anti-false trademark. It is an ideal equipment for flexo printing machine, continuous rotary printing machine. gravure printing machine and anti-false trademark die press machine and is also the most efficient equipment for label printing machinery company.

Standard configuration:

1 feeder,1 slicer,1 host,1 upper form borads for diecutting,1 lower form board for die cutting,Metal tooling.

Optional Configuration:

1. Hot stamping 2. punching 3. lamination



Model GS320 model GS420 model
cutting speed 20-170 strokes/min 20-170 strokes/min
Max unwinding diameter 500mm 500mm
Max width width 320mm 450mm
Max die-cut width 300mm 400mm
Max die-cut Length 300mm 400mm
Position accuracy ±0.1mm ±0.1mm
Total power 3.5kw 4.5kw
Power voltage 220v±10% 380v±10%
Machine weight About 1700kg About 2300kg
Overall dimension 2600L×950W×1400H(mm) 2700(L)×1.05(W)×1.5(H)(m)
