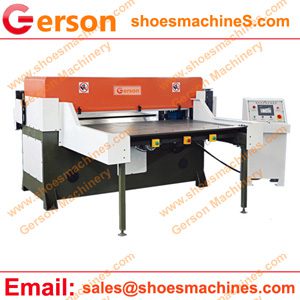

Gerson Abrasive Paper Cutting Machine is die cutting machine for sandpaper,abrasive emery paper,board,Abrasive Paper,Emery Cloth,Sand Ring,Disc sand,etc .,similar products.
1.Gerson abrasive paper cutting machine including the whole production line for customers choice such as: uncoiler,automatic feeding mechanism,abrasuve paper collector,waste winder etc.,
2.Auto Balance when the machine cutting material.
3.The main machine is controlled by four-column guiding, double-crank balancing, four-column blocking fine-adjustment mechanism and hydraulic control system, which can guarantee the speed and accuracy of die cutting of machine.
4.Gerson machinery accept Custom design and manufacturing accordign to request.
| Model | GRBC-25T to 500T |
| Max cutting force(T) | From 25T to 500 |
| Distance between upper press board andworktable(mm) | 50-240 |
| Cutting area(mm) | 1250×600,700,800,900,1000,1200, 1500 |
| 1470×600,700,800,900,1000,1200, 1500 | |
| 1600×600,700,800,900,1000,1200, 1500 | |
| Motor power | 1.5 to 22KW |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 | |
| 1800 to 18500 |
