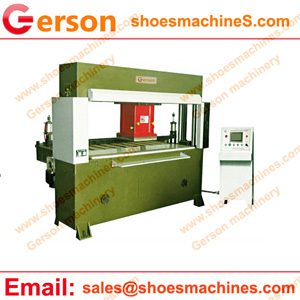

The travelling head cutting press for cutting abrasive material.Gerson have many years in the variety of solutions and experience.So if you want to build the automatic cutting for abrasive material,please contact us.
The travelling head press feature:
1.Both for cutting soft or semi-rigid in single layer or multiple layers.
2.Cutting head left and right together with the cutting die ensures the clear view over the table.
3.Fully automatic cutting system avaliable including feeding, cutting, knock-out and stacking system make high productive.
5.Large cutting bed with 500*500mm trolley or 600*600trolley or more wide trolley ,Any size trolley can custom made.
6.From 25T to 100Tcutting force for choice or can custom made.
7.Special custom design or specifications welcome.
| Model | GRM(A)-25T to 200T |
| Max cutting force(T) | From 25 Tons to 200 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm |
| Cutting table width(mm) | 1800~2500mm or more |
| Based on your material and die | |
| Example: 1600X600mm etc., | |
| Cutting Head Movable trolley | 500×500 to 1000x1000mm |
| Motor power | 3kw to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
