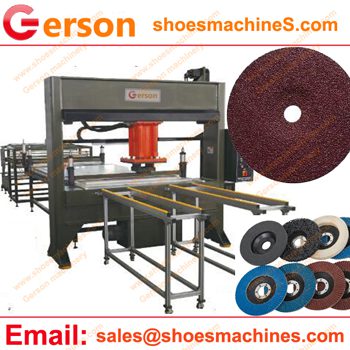

Abrasive fiber disc die cutting machine

Abrasive fiber disc die cutting machine is the die cutting machine for die cutting out the abrasive fiber disc,Ceramic fiber discs,Non-Woven Abrasive, fibre discs abrasive mop discs, 40-Grit Steel Demon Grinding and Polishing Flap Disc and grinding discs ,non-woven web discs – For medium-duty rough grinding and polishing,Coated Abrasive ,Sanding paper ,wool fet and so on.,And the material can be any brand such as the brand from 3M,ARC ABRASIVES,PREDATOR,UNITED ABRASIVES-SAIT etc.,

Abrasive fiber disc die cutting machine
Abrasive fiber disc die cutting machine

1.The abrasive fiber disc die cutting machine can autoamtic feed the material and continuous die cutting .So it is save lots of time and labor cost and increase the production capacity.

2.We also have the manual feed die cutting machine if you only small procution .So we have different production capacity requirement selection die cutting machine for your choice.

3.The abrasive fiber disc die cutting machine can die cut out any shapes and size by the cutting die or mold ,such as 2″,3″,4″ 4-1/2″,5″,6″,7″,7-1/2″,8″,9″,9-1/8″,11-1/4″,12″ inches or more other size .And the shape can be any shapes such as square ,round , or any irregular shapes .

4.The cutting feed ,cutting bed size, cutting force etc., all can be customized by Gerson machinery.

Model GRM(A)-25T to 200T
Max cutting force(T) From 25 Tons to 200 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting table width(mm) 1800~2500mm or more
Based on your material and die
Example: 1600X600mm etc.,
Cutting Head

Movable trolley

500×500 to 1000x1000mm
Motor power 3kw to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
