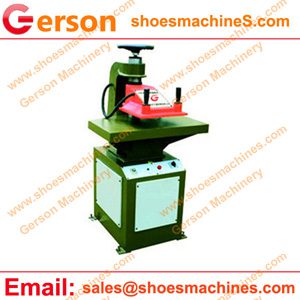

This swing arm cutting press mostly for the small die .Such as ticket clip units,handset sleeve,small toys,adornments,leather bag fitting etc.
1.Simple operation with swing arm .so we called swing arm cutting machine
2.The upright column is made of high-grade seamless steel tube,supported by two upper and ower holes ,to ensure the upperstrike board can turn smoothly,with good reliability.
3.Adopt the switches that are operated by two hands ,to ensure the operator is safe.
4.The position of the swing arm is adjusted by the upper handwheel on the machine,blankingtravel is controlled by the timer,thus it is easy to obtain the best cutting position ,which can increase work efficiency and prolong the service life of the knife mould and backing board
5.Use flywheel inertia stored energy to save energy.
Model: GSB-8/10
Pressure: 8T/10T
Motor: 1.1Kw
Stroke : 100mm
Size of the working table: 580x380mm
Cutting width: 330mm
N.W: 450Kg
Dimension: 580x800x1650mm
