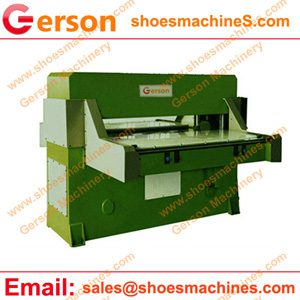

70 ton beam cutting machine

70 ton beam cutting machine have two types fixed beam cutting machine with 70 tonnes and movable beam cutting machine with 70 tonnages.Also 70 ton cutting machine also including 70 ton traveling head cutting machine.

Application:Can die cutting any normal size of non-metal material:leather,fabric,foam,plastic,cork,wood,rubber etc.,

1.70 ton fixed beam cutting machine

70 ton beam cutting machine
70 ton beam cutting machine

The fixed beam cutting machine means the cutting machine with fixed beam .The cutting beam only can run up and down to the cutting material.Cutting force,cutting table size can be custom build.

The detailed specification:

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500

The movable beam cutting machine means the cutting machine with movable beam .The cutting beam not only can run up and down to the cutting material but also can move Forward and backward.Cutting force,cutting table size can be custom build.

Model GRH(C)
Cutting Force 25-500 tons
Bed Depth 20-100 inches
Bed Width 35-100 inches
Feed Systems receding head feed
Cutting Surfaces Cutting Boards, Hardened ground steel plates
Materials Abrasives, Carpet, Cork, Felt, Foam, Leather, Packaging, Rubber ,
