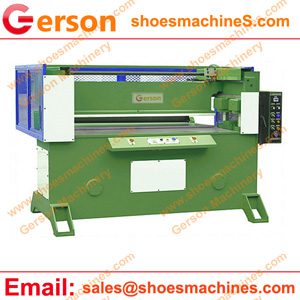

Gerson 60 Tonnages Cutting Machine is die cutting machine have 60 tonnages cutting force .Gerson have two types 60 tonnages cutting machine: 60 tonnages traveling head cutting machine and 60 tonnages beam cutting machine.Gerson also have from 5 tonnages to 500 tonnages cutting machine.
The material and industry that die cutting machine application:
Automotive components
Abrasives
Carpet and flooring
Carpet and flooring pattern books and sample swatches
Clothing – components for hats, ties, collars, shoulder pads
Cork gaskets and mats
Disposables – pads, wipes, strips
Electronic components – flexible PCB’s touch pads, button covers, legend plates
Felt strips, washers, gaskets
Filters for machinery, breathing apparatus and the medical industry
Foam and sponge – gaskets, packaging, consumer products
Footwear components – shoes, insoles, insole socks, uppers, straps
Gaskets, seals, washers in plastic, cork, rubber, paper, felt, PTFE, graphite and more
Insulation materials
Medical products – filters, dressings, foot care products, orthopaedic footwear
Packaging – foam, inserts, card, promotional products, blister packs
Paper, card – stationery, novelties, filters, labels
Plastic cards – promotional, business, badges, labels
Plastics – PVC binders, lampshades, stationery products, gifts, novelties, gaskets
Rubber – gaskets, seals, washers
Textiles – sample swatches and pattern books, underwear and outerwear components, hats, ties
Toys – soft toys, advertising novelties, mini jig-saw puzzles and more
1.60 tonnages traveling head cutting machine
The cutting jobs and patterns are pre-programmed into the cutting press machine computer or this can be carried out off-line and information sent down to the machine. Thus, the operator has no more to do than load the material and cutting tool and gather the cut pieces as they emerge from the machine: the machine dictates the speed, accuracy and material yield.
1.Both for cutting soft or semi-rigid in single layer or multiple layers.
2.Cutting head left and right together with the cutting dies ensures the clear view over the table.
3.Fully automatic cutting system avaliable including feeding, cutting, knock-out and stacking system make high productive.
5.Large cutting bed with 500*500mm trolley or 600*600trolley or more wide trolley ,Any size trolley can custom made.
6.From 25T to 100Tcutting force for choice or can custom made.
7.Special custom design or specifications welcome.
| Model | GRMA-25,30,40,50,60,80,100 |
| Max Cutting Force | 25 to 100 tons |
| Cutting table Widths | 1800~2500mm or more |
| Cutting Head/Movable trolley | 500 x 500mm up to 1000 x 1000mm |
| Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc., | |
2.60 tonnages beam cutting machine:
This machines most used for large area soft material die cutting .The cutting area can from 1250mm ×500mm to 2000mm×2000mm.The cutting power or pressure from 30 tons to 500 tons.
1.Using double fuel tanks and precision four-post self auto-balancing linkage guarantees the same cutting depth of each cutting position.
2.The pressing board of cutting carries out slow cutting when it contacts the die cutters, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
3.Precise cutting balance can effectively reduce the loss of knife mold and cutting plate.
4.The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.
5. The following equipment tools can improve the productivity for customers choice :Automatic feeding material system and Inboard and outboard material conveyors ,material feed rollers and automatic knock-out systems
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Distance between upper press board andworktable(mm) | 50-240 |
| Cutting area(mm) | 1250×600,700,800,900,1000,1200, 1500 |
| 1470×600,700,800,900,1000,1200, 1500 | |
| 1600×600,700,800,900,1000,1200, 1500 | |
| Motor power | 1.5 to 22KW |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
