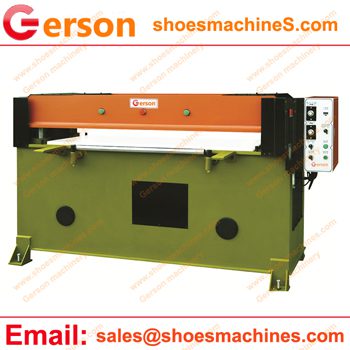

50T die cutting machine

50T die cutting machine is 50 ton die cutting machine which can die cut out many material in sheet or roll format.

50T die cutting machine
50T die cutting machine

1.The machine can die cut out different pieces from sheet material and roll material.The machine works with the cutting die .The cutting die or cutting mold which is also made by Gerson machinery.

2.It is using hydraulic system to get enough hydraulic pressure when doing cutting jobs.

3.Four column or post ,auto balance ,double cyclinder all make sure the strong enough for the machine.

4. This 50T ton die cutting machine set up as a manual, semi-automatic or fully automatic die cutting machine.Manual feed or single double sided sliding table sheet feeder or CNC belt feeding etc.,

5.All custom build ,please contact Gerson .

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(500-3000)mm
Based on your material and die
Example: 1800X700mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500
