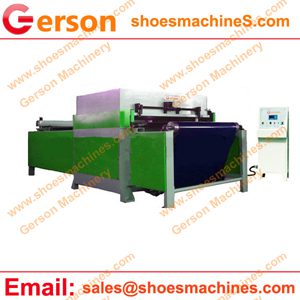

50T beam press

Gerson 50T beam press is beam die cutting machine with 50T cutting power.The beam press have fixed beam press and movable beam press .

50T beam press
50T beam press

1.The beam press is die cut most material such as leather,paper,plastic, cork, rubber, paper, felt, foam. PTFE, graphite
2.The beam press is used for most industry:Automotive components,Leather & footwear components,Packaging,Abrasive,Aircraft,Clothing,Envelopes,Gasket,Home_Furnishings,Medicaletc.,
3.The beam press uses a four column strong construction which utilizes an internal mechanical levelling system to insure a parallel cutting stroke and full uniform pressure all over the cutting bed.
4.The cutting Tooling can be placed on the tray or free placed onto the material or mounted under the beam. Available as single manual work table, double manual work table, single motorized work sliding table or double motorized work slinding table/tray.The double work table allows two operators to work the press (one each side of the press) for increased productivity.Also have the belt feed system which allows difficult materials feed into the cutting area very easily.
5.The Beam Presses from 25 to 500 Tons with cutting bed from 1250x500mm to any more large size.Gerson accept any custom build requirement.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500,2000
1470×600,700,800,900,1000,1200, 1500,2000
1600×600,700,800,900,1000,1200, 1500,2000
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
