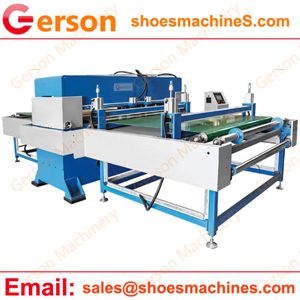

50-ton-beam-press-with-clamping-beam-feed is A 50-ton hydraulic beam die-cutting press with a clamping beam feed.It is a powerful and versatile machine tool used for cutting various materials, including sheet or roll fabric ,leather , rubber, plastic, and composite materials etc., It combines the precision of a fixed beam press with the efficiency of an automated clamping feeding system.
Key features and specifications:
- Cutting force: 50 tons (500 kN) ,can be custom built any cutting force. you can opt for higher or lower tonnage depending on the thickness and material you’re cutting.
- Fixed beam design: The cutting head remains stationary, while the worktable moves up and down to engage the cutting tool.(Option: movable beam design)
- Hydraulic power: The press is powered by a hydraulic system that provides the necessary force for cutting.
- Cutting tool: The cutting tool can be a variety of shapes and sizes, depending on the specific application.We could design and manufacturing the cutting die tool mold for you .
- Table size: The size of the worktable varies depending on the model, but it typically ranges from 1600mm x 500mm to 3000mm x 2000mm. or any other size.You can choose from a variety of worktable sizes to accommodate different material widths and lengths.
- Stroke length: The stroke length, or the distance the worktable travels, is typically around 240mm.This is the vertical distance the cutting beam travels. It can be adjusted to suit your specific cutting requirements.
- Daylight opening: The daylight opening is the distance between the cutting head and the worktable when the press is fully open. This can vary depending on the model.You can customize this to accommodate different material thicknesses and die heights.
- Clamping beam feed: This feeding system uses a clamping beam to hold and advance the material into the cutting area. The beam can be pneumatically or hydraulically actuated, and it can be programmed to feed the material at a specific rate.You can choose from various feeding systems, such as roll feeds, gripper feeds, or belt feeds, based on your material and production needs.
-
Control System:
- PLC control: A programmable logic controller (PLC) can be used to control the press’s operation, including cycle time, pressure, and feed speed.
- User interface: The control panel can be customized to provide intuitive operation and monitoring capabilities.
Safety Features:
- Safety guards: You can add safety guards and interlocks to protect operators from potential hazards.
- Emergency stop: An emergency stop button can be installed to quickly halt the press in case of an emergency.
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm can be customized |
| Cutting area(mm) | (500-3000)X(1000-3000)mm |
| Based on your material and die | |
| Example: 1600X600mm etc., | |
| Motor power | 1.5 to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
Common Applications of 50 ton beam Presses
| Industry | Applications |
|---|---|
| Textile | Cutting fabric for clothing, upholstery, and other textile products |
| Leather | Cutting leather for footwear, handbags, belts, and other leather goods |
| Rubber and Plastic | Cutting rubber and plastic sheets for gaskets, seals, and other components |
| Paper and Packaging | Cutting paper and cardboard for packaging and printing |
| Automotive | Cutting gaskets, seals, and interior components |
| Electronics | Cutting circuit boards, insulation materials, and labels |
| Medical | Cutting medical supplies and equipment |
| Industrial | Cutting filters, gaskets, and other industrial components |
Customizing a 50-ton hydraulic beam die-cutting press allows you to tailor the machine to your specific needs,
When considering a custom-built press, it’s crucial to work closely with Gerson to ensure that your specific requirements are met. We can provide expert guidance on the best configuration for your application and help you design a machine that maximizes productivity and minimizes downtime.
By customizing your 50-ton hydraulic beam die-cutting press, you can achieve optimal performance and efficiency for your specific production needs.
