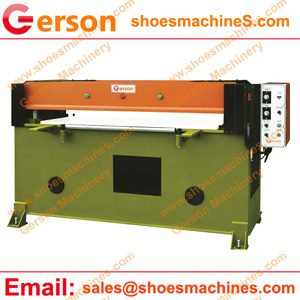

Gerson 40T beam press with four column is the die cutting press machine that used in many industry such as packaging ,leather products,glove,shoes ,medical products ,electronic products,foam pad,gasket sealing etc.,
1.This beam press can die cut out most soft and semi-rigid material or similar material such as the leather,fabric,plastic,paperboard,cork ,rubber,foam,plastic ,PVC,lots of similar products.
2.The precise four-column, automatic balance connecting rod and top hydraulic control system, which can guarantee the speed and accuracy of die cutting for the material.The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.
3.The manual feed material or automatic feed material which can improve the productivity for customers choice :Automatic feeding material system and Inboard and outboard material conveyors ,material feed rollers and automatic knock-out systems.
4.The other cutting force from small type pressure to big cutting pressure ,the cutting area small szie to big size can custom design and build by Gerson.
5.More information of the machine or any request ,please contact us any time.
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Distance between upper press board andworktable(mm) | 50-240 |
| Cutting area(mm) | 1250×600,700,800,900,1000,1200, 1500,2500 |
| 1600×600,700,800,900,1000,1200, 1500,2500 | |
| 2000×600,700,800,900,1000,1200, 1500,2500 | |
| Motor power | 1.5 to 22KW |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
